PrintWant 3D UV Printer PW301-UV 3D Silicone Style Patches Digitally Printed For Textile Applications
UV 3D Printing for Fabric:

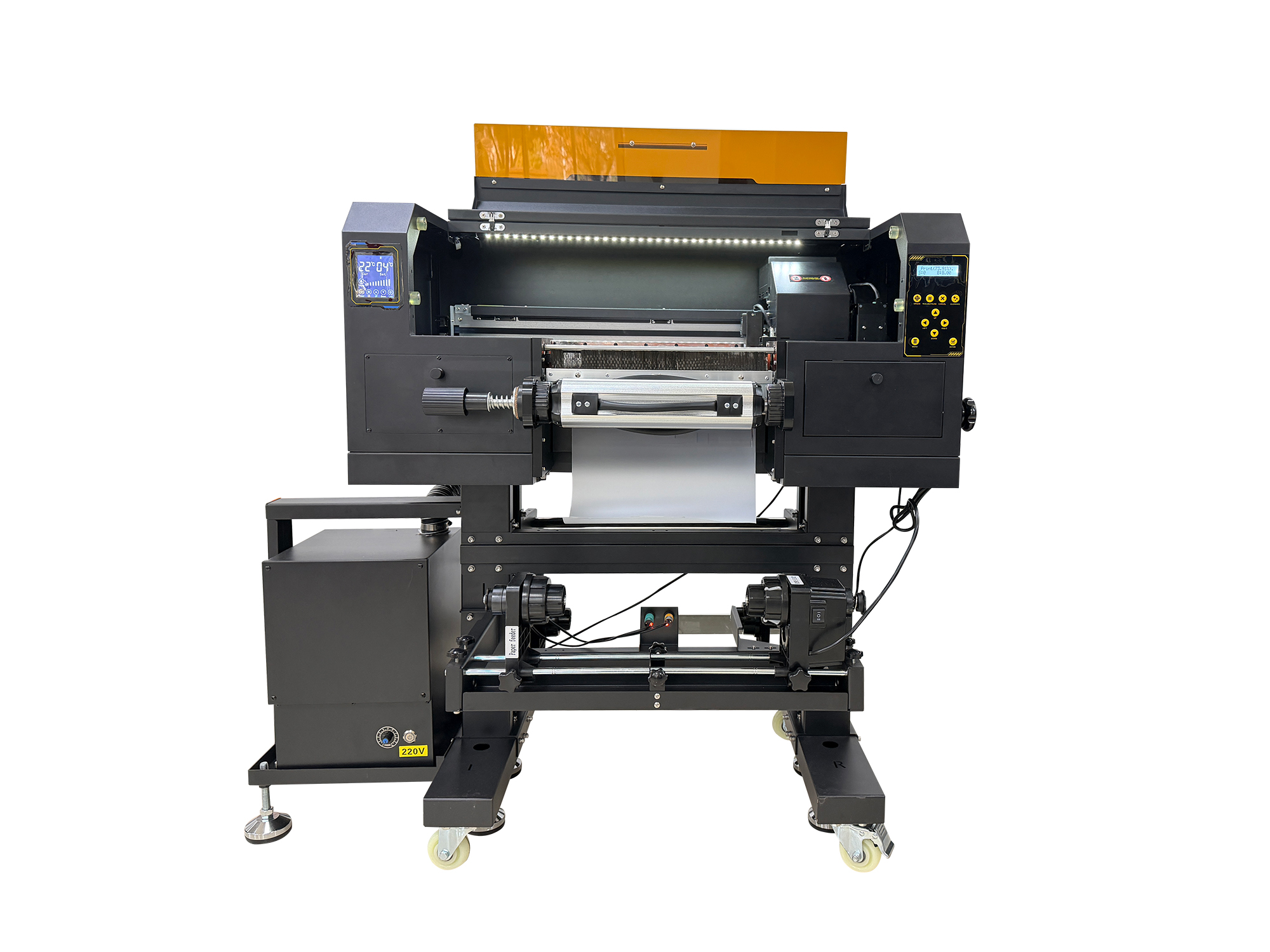

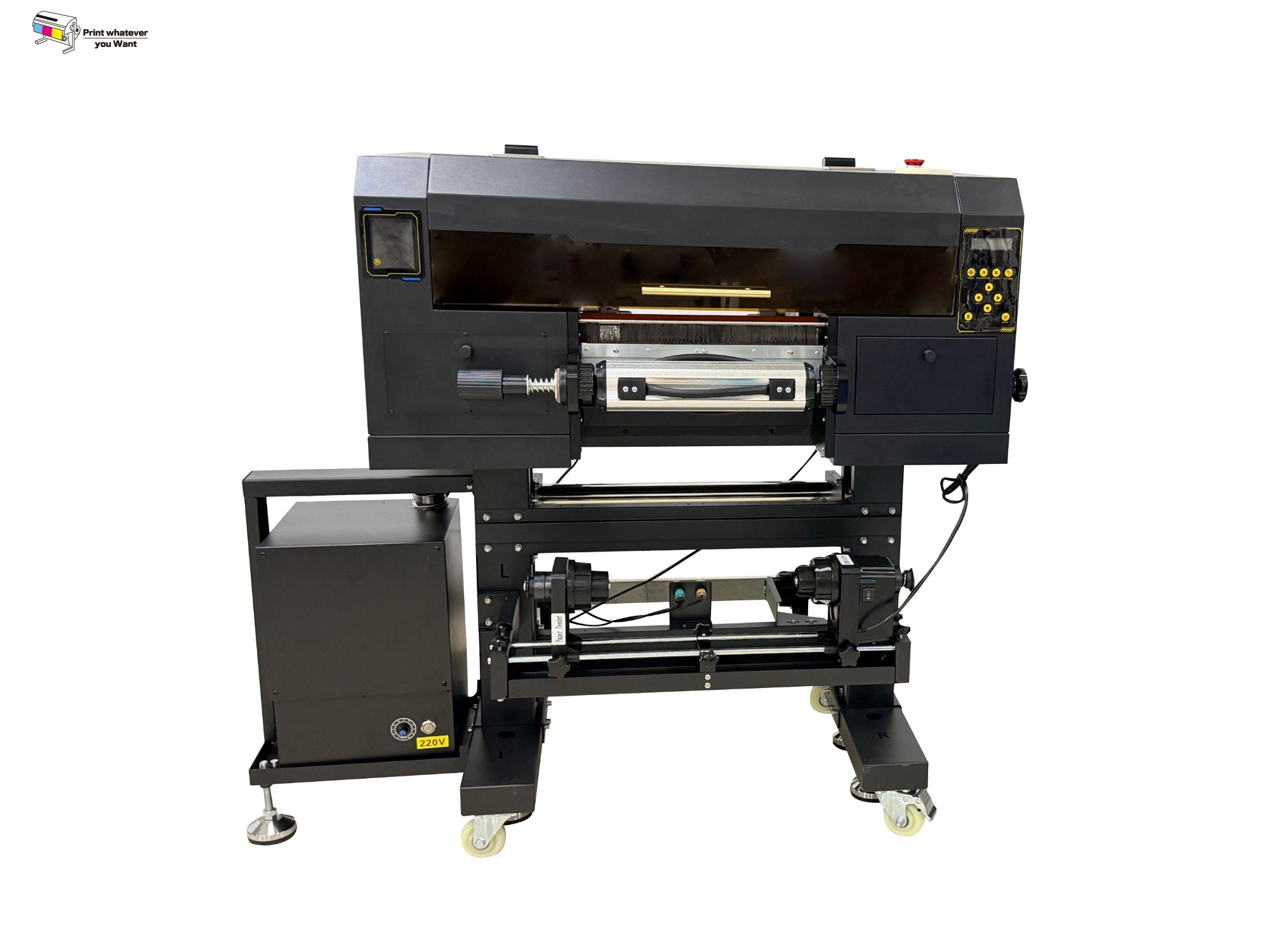

(1) 3D UV DTF Printer: The PW301 3D UV Printer has one head - i3200 U1 HD.
"tilt technology" for printhead, this head has 8 tunnels: CMYK+WW+VV. In 3D Printing, "tilt technology" could increase the print success rate and significantly increase printing speed.
We use the RIIN RIP software for the printer, which generates the cutting file and reg marks.

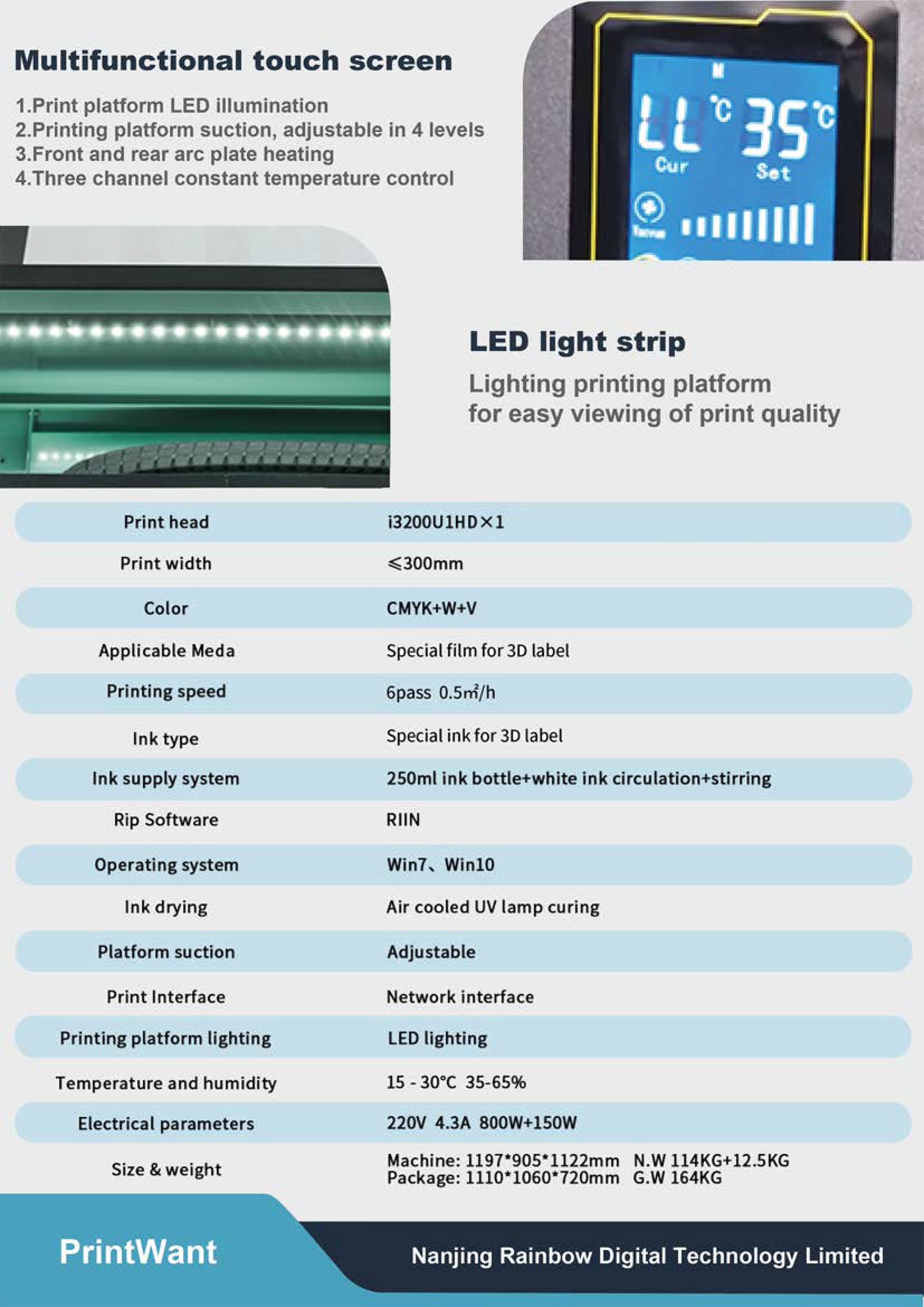

Printing speed:
6 pass, 7 layers of white, 0.75 ㎡/h.
8 pass, 2 layers of white, 0.55 ㎡/h.
(2)We use a PWC 3040 flatbed cutting machine (30cm*40cm). It has a smart touch screen, a high-definition camera, high speed, low noise; supports multiple connection ports including USB, Flash Drive, Wifi.
Knife pressure:
0.35mm（35c）of PrintWant's White 3D TPU UV Film，340 pressure
0.5mm（50c）of PrintWant's White 3D TPU UV Film，360pressure
0.6mm（60c）of PrintWant's Glitter/Silver 3D TPU UV Film，400-450 pressure
(3) TPU 3D UV Films, we have White, Gold glitter, Silver glitter, Glow-in-the-dark, and Mirror Gold/Silver colors.
0.35mm, 0.5mm thicknesses are available.
(4) Soft 3D UV Inks, which have a very soft feeling and are scratch-resistant.
