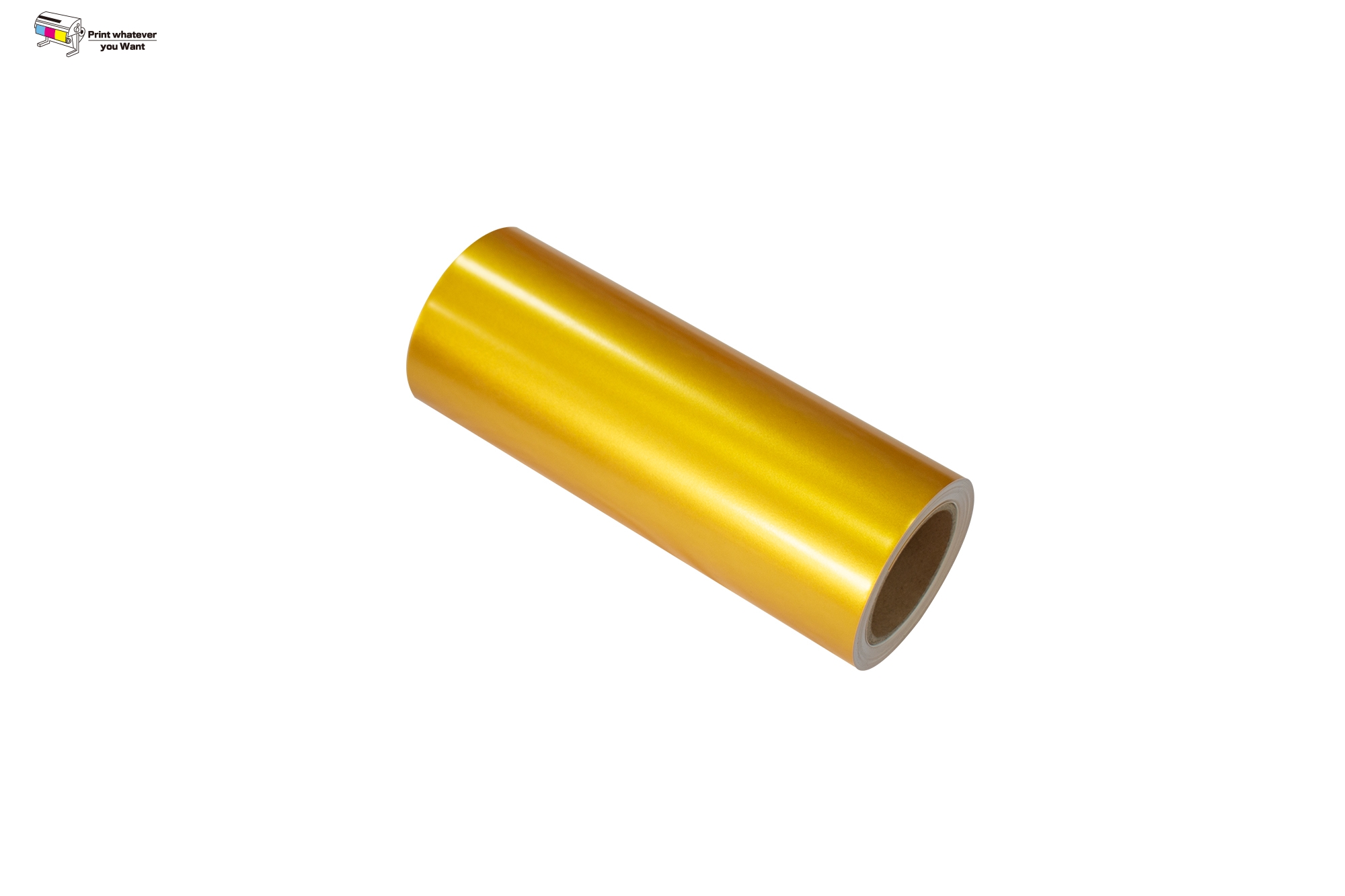

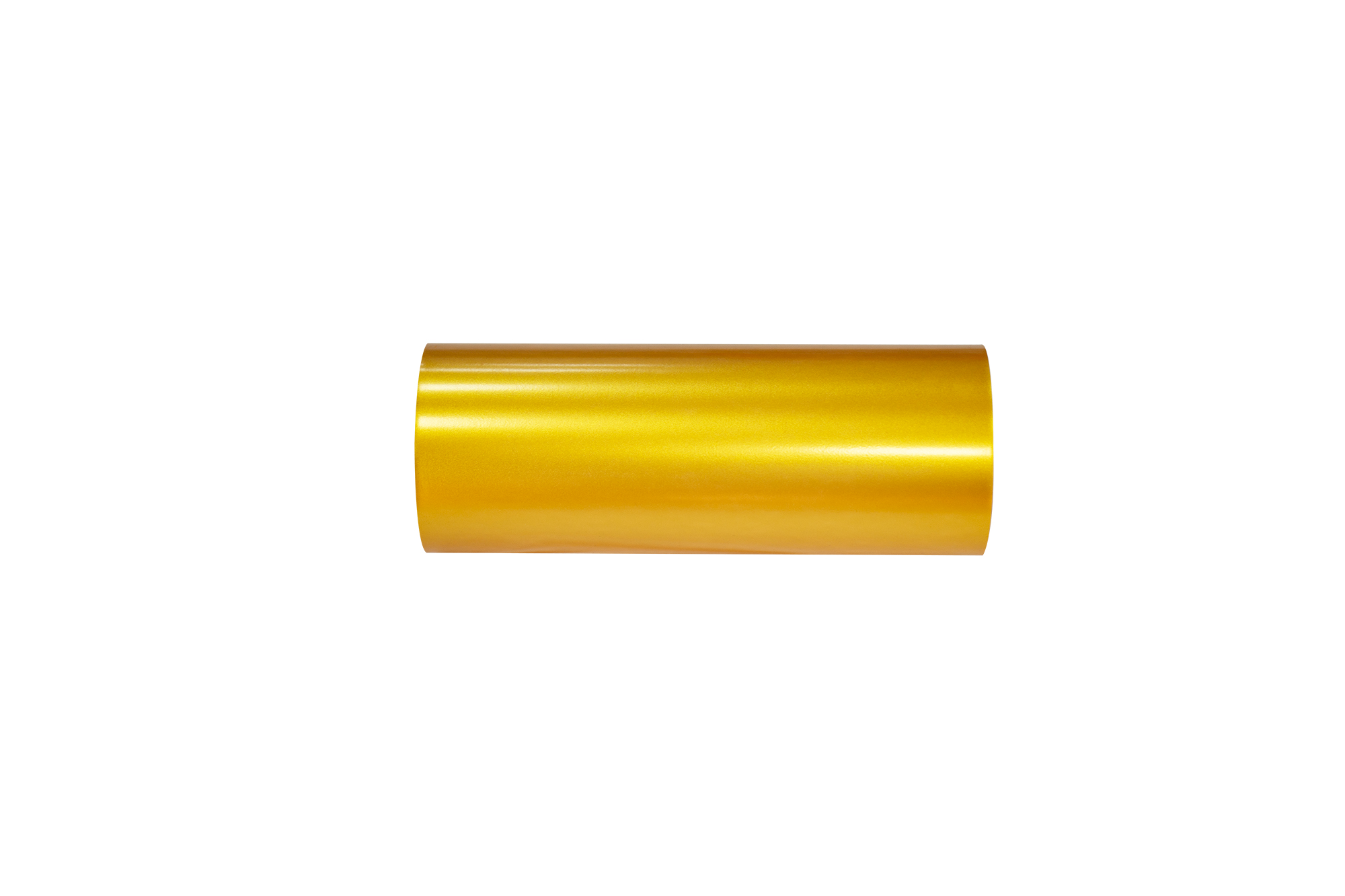

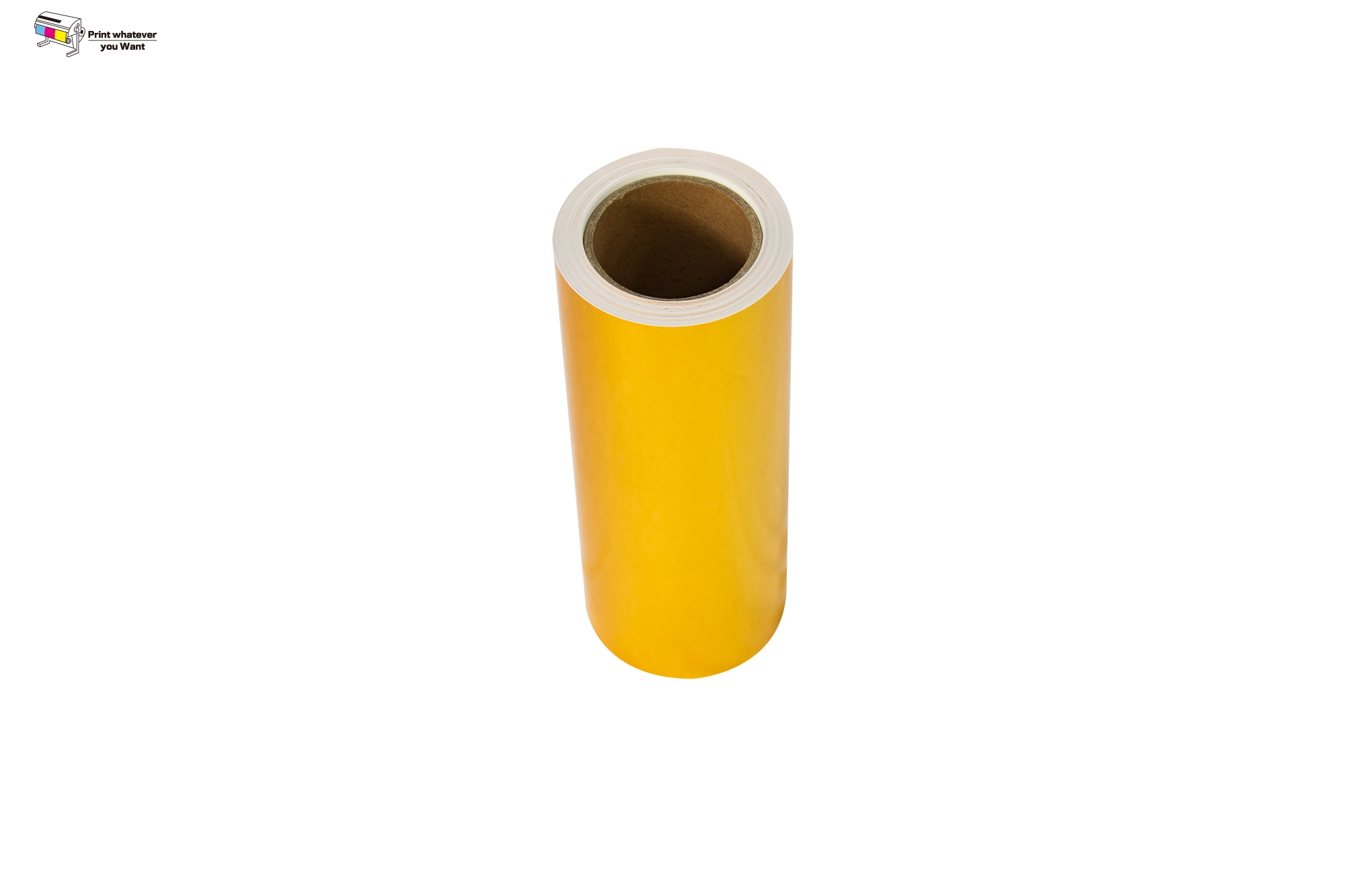

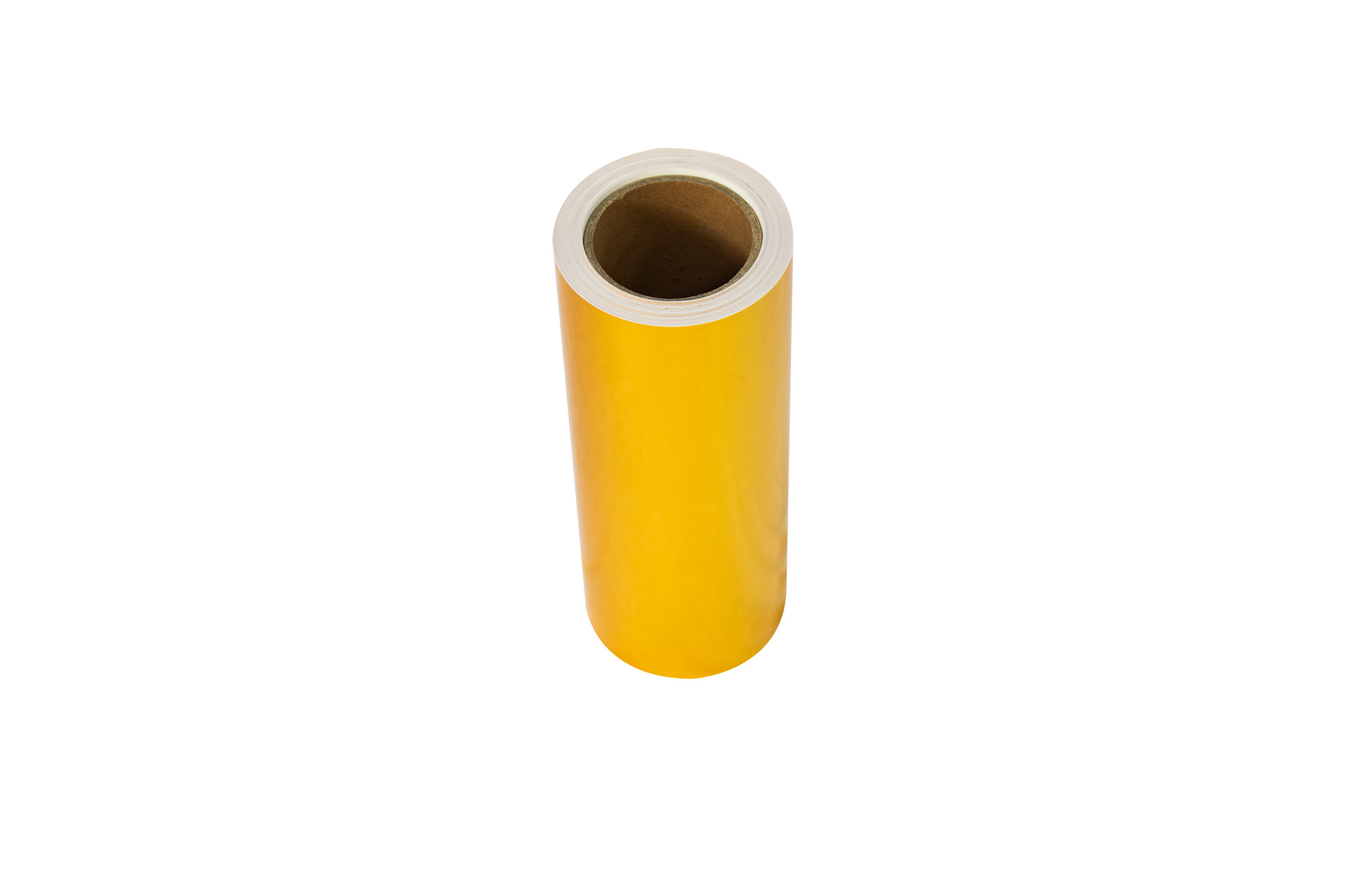

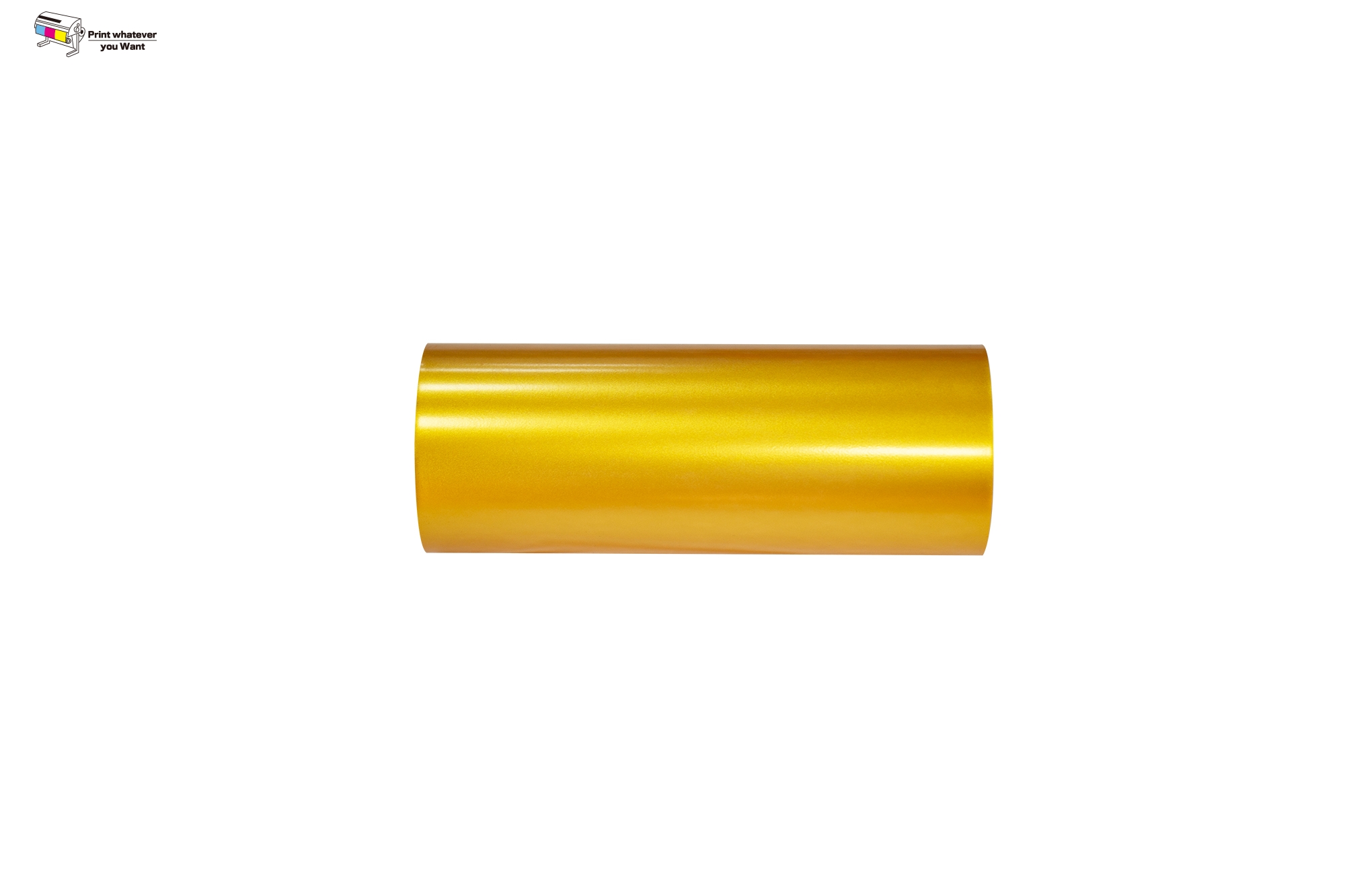

PrintWant Gold 3D TPU UV Film For Custom Logo
Feature: Washable
Size: 0.31m*50m/Roll
Type: 3D UV Film
Thickness: 350μm/500μm
Heat press time: 8-10S
Heat press temperature: 150℃-160℃
UV 3D Printing for Fabric:
(1) 3D UV DTF Printer: The PW301 3D UV Printer has one head - i3200 U1 HD.
- "tilt technology" for printhead, this head has 8 tunnels: CMYK+WW+VV. In 3D Printing, "tilt technology" could increase the print success rate and significantly increase printing speed.
- We use the RIIN RIP software for the printer, which generates the cutting file and reg marks.
-Printing speed:
6 pass, 7 layers of white, 0.75 ㎡/h.
8 pass, 2 layers of white, 0.55 ㎡/h.
(2)We use a PWC 3040 flatbed cutting machine (30cm*40cm). It has a smart touch screen, a high-definition camera, high speed, low noise; supports multiple connection ports including USB, Flash Drive, Wifi.
Knife pressure:
0.35mm（35c）of our White 3D TPU FILM， 340 pressure
0.5mm（50c）of our White 3D TPU FILM， 360pressure
0.6mm（60c）of our Glitter/Silver 3D TPU FILM， 400-450 pressure
(3) TPU 3D DTF FILMS, we have white, Gold glitter, silver glitter, glow-in-the-dark, and Mirror Gold/Silver colors.
0.35mm, 0.5mm thicknesses are available.
(4) Soft 3D UV Inks, which have a very soft feeling and are scratch-resistant.
